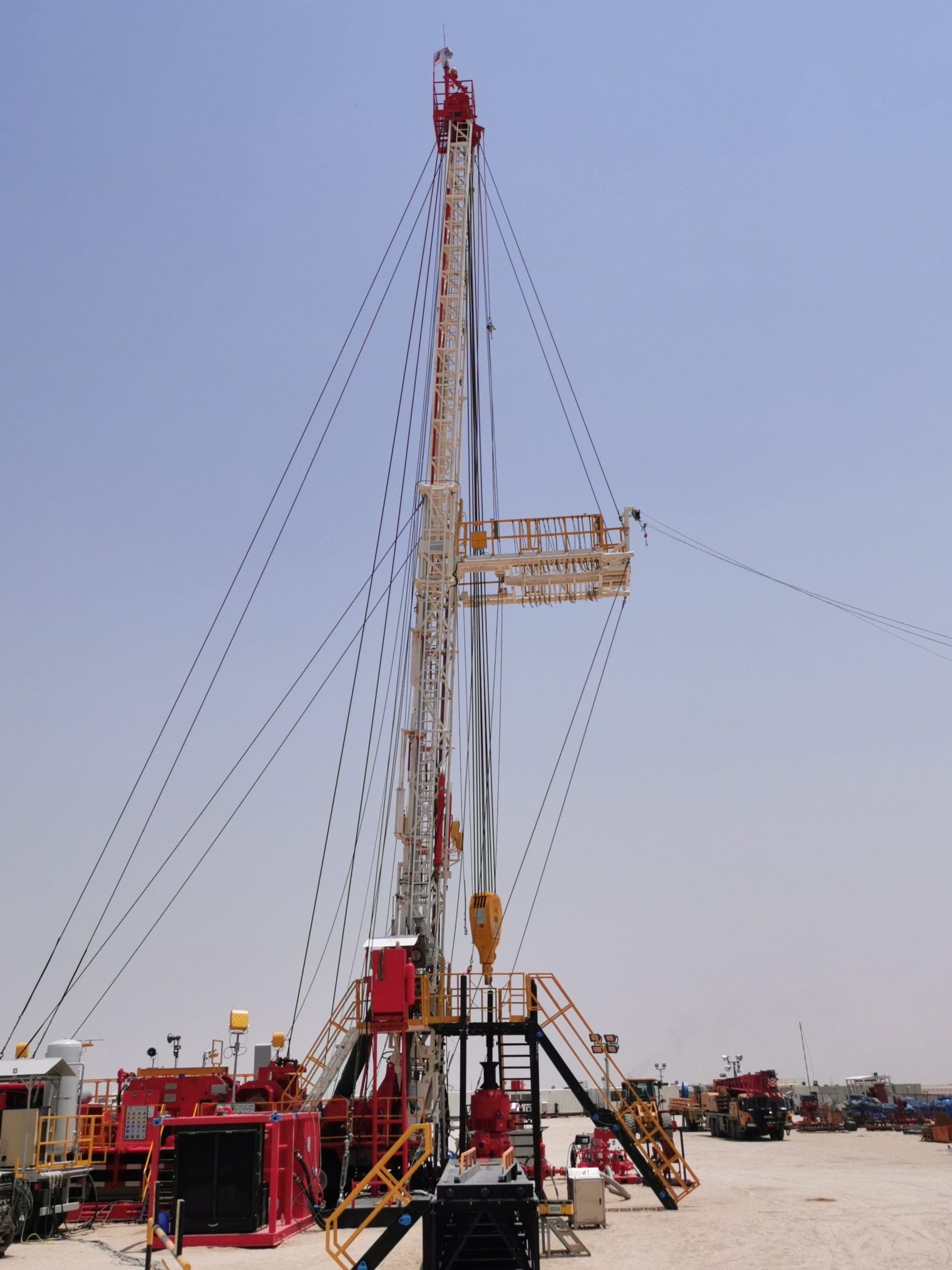

RIG-54
RIG-53
| Rig name | RIG-18 |
| Rig Type | HONGHUA |
| Rig year of construction or assembly | 2014 |
| RIG HP | 1500HP |
| Rotary Table | HH ZP-375 |
| Drilling Line | 1-3/8′ |
| Top Drive | NOV-TDS-11SA |
| Power System | VFD |
| Mud Pumps | HHF-1600HL |
| Nominal drilling capability with 5” OD drill pipes | 6000 M |
| Total truck trips required to move the Rig between locations | 150 LOADS WITH MINI CAMP AND MAIN CAMP |
| Standard truck trips required to move the Rig between locations | 140 TRIPS |
| Out of standard truck / trailer trips required to move the Rig between locations | 10 TRIPS |
| Estimated Rig up time.(days) | 3 DAYS |
| Rated hoisting capacity of crane requested to handle the heaviest load | 100 TONS |
| Actual Rig status (drilling-idle-etc.) | DRILLING |
| Actual Rig location. | KOC |
| Average fuel consumption in normal drilling operation | 7500 LITRES PER DAY |
| DERRICK or MAST | 750,000 Ibs |
| CROWN BLOCK | 350 Ton |
| TRAVELLING BLOCK Rated load capacity (mt.) | 460 Ton(4500KN) |
| HOOK | N/A |
| SWIVEL HEAD | N/A |
| TOP DRIVE | 500 Ton |
| RACKING PLATFORM Rated Load Capacity(DP, DC) | 120 Stands = 5” DP 2 Stands = 10” DC 5 Stands = 81/4” DC 6 Stands = 6 ½” DC |
| RIG FLOOR SET BACK Rated load capacity (mt.) | 350.000 Ibs |
| ROTARY CASING CAPACITY Rated load capacity (mt.) | 650,000 lbs |
| DRAWWORK: main drum | 750,000 Ibs |
| DRILLING LINE | 750,000 Ibs |
| DEAD LINE ANCHOR Max. load that rig can handle | 350 MT |
RIG-72

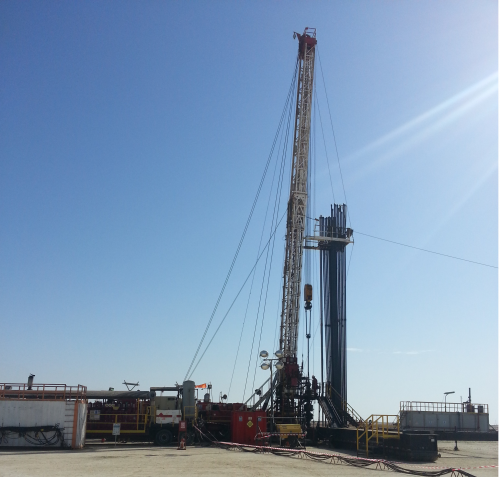

RIG-71
Rig – 51
Kuwait Oil Company
| Rig name | RIG-16 |
| Rig Type | HONGHUA |
| Rig year of construction or assembly | 2014 |
| RIG HP | 1500HP |
| Rotary Table | HH ZP-375 |
| Drilling Line | 1-3/8′ |
| Top Drive | NOV-TDS-11SA |
| Power System | VFD |
| Mud Pumps | HHF-1600HL |
| Nominal drilling capability with 5” OD drill pipes | 6000 M |
| Total truck trips required to move the Rig between locations | 150 LOADS WITH MINI CAMP AND MAIN CAMP |
| Standard truck trips required to move the Rig between locations | 140 TRIPS |
| Out of standard truck / trailer trips required to move the Rig between locations | 10 TRIPS |
| Estimated Rig up time.(days) | 3 DAYS |
| Rated hoisting capacity of crane requested to handle the heaviest load | 100 TONS |
| Actual Rig status (drilling-idle-etc.) | DRILLING |
| Actual Rig location. | KOC |
| Average fuel consumption in normal drilling operation | 7500 LITRES PER DAY |
| DERRICK or MAST | 750,000 Ibs |
| CROWN BLOCK | 350 Ton |
| TRAVELLING BLOCK Rated load capacity (mt.) | 460 Ton(4500KN) |
| HOOK | N/A |
| SWIVEL HEAD | N/A |
| TOP DRIVE | 500 Ton |
| RACKING PLATFORM Rated Load Capacity(DP, DC) | 120 Stands = 5” DP 2 Stands = 10” DC 5 Stands = 81/4” DC 6 Stands = 6 ½” DC |
| RIG FLOOR SET BACK Rated load capacity (mt.) | 350.000 Ibs |
| ROTARY CASING CAPACITY Rated load capacity (mt.) | 650,000 lbs |
| DRAWWORK: main drum | 750,000 Ibs |
| DRILLING LINE | 750,000 Ibs |
| DEAD LINE ANCHOR Max. load that rig can handle | 350 MT |

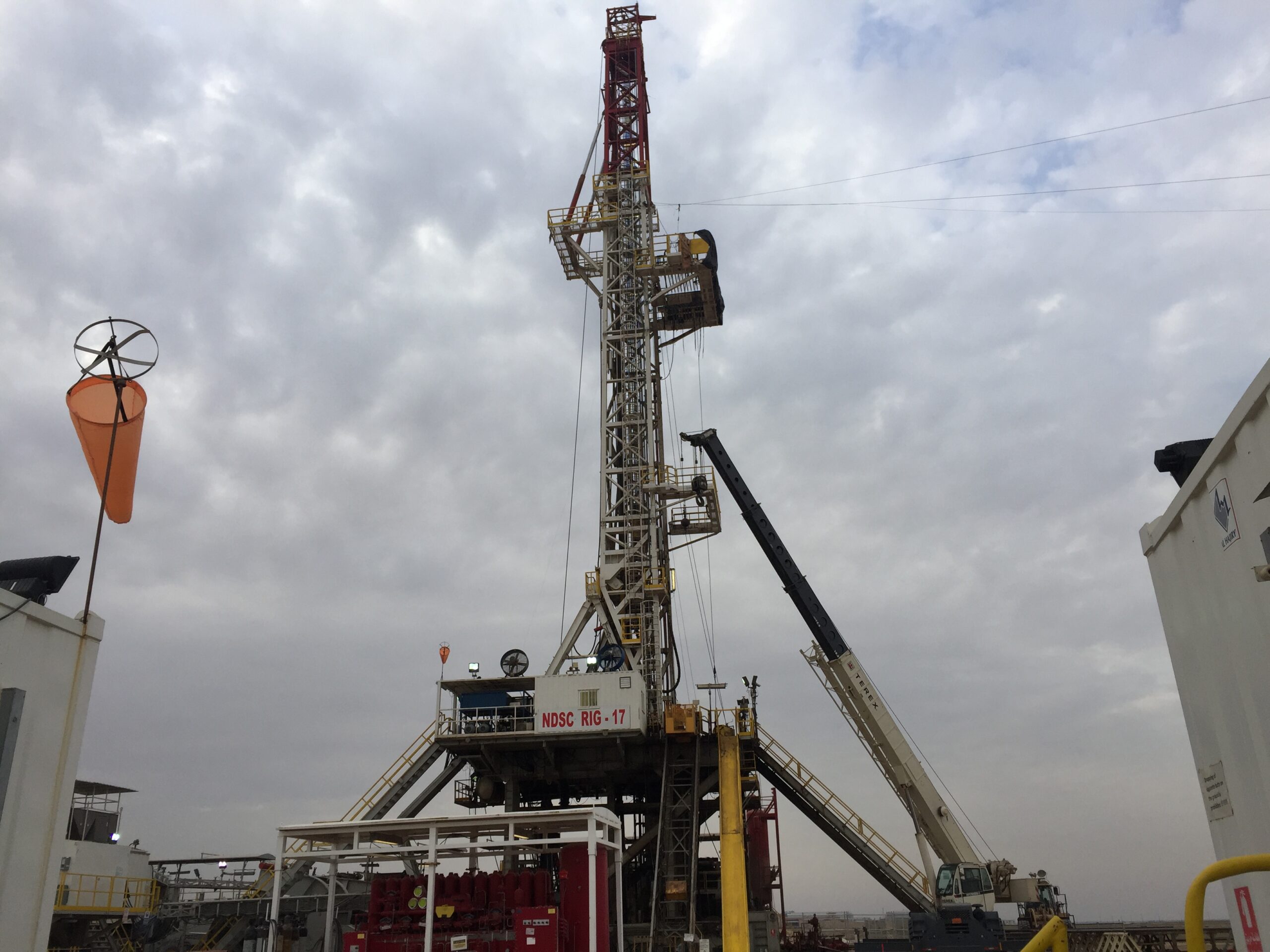

| Rig name | RIG-17 |
| Rig Type | HONGHUA |
| Rig year of construction or assembly | 2014 |
| RIG HP | 1500HP |
| Rotary Table | HH ZP-375 |
| Drilling Line | 1-3/8′ |
| Top Drive | NOV-TDS-11SA |
| Power System | VFD |
| Mud Pumps | HHF-1600HL |
| Nominal drilling capability with 5” OD drill pipes | 6000 M |
| Total truck trips required to move the Rig between locations | 150 LOADS WITH MINI CAMP AND MAIN CAMP |
| Standard truck trips required to move the Rig between locations | 140 TRIPS |
| Out of standard truck / trailer trips required to move the Rig between locations | 10 TRIPS |
| Estimated Rig up time.(days) | 3 DAYS |
| Rated hoisting capacity of crane requested to handle the heaviest load | 100 TONS |
| Actual Rig status (drilling-idle-etc.) | DRILLING |
| Actual Rig location. | KOC |
| Average fuel consumption in normal drilling operation | 7500 LITRES PER DAY |
| DERRICK or MAST | 750,000 Ibs |
| CROWN BLOCK | 350 Ton |
| TRAVELLING BLOCK Rated load capacity (mt.) | 460 Ton(4500KN) |
| HOOK | N/A |
| SWIVEL HEAD | N/A |
| TOP DRIVE | 500 Ton |
| RACKING PLATFORM Rated Load Capacity(DP, DC) | 120 Stands = 5” DP 2 Stands = 10” DC 5 Stands = 81/4” DC 6 Stands = 6 ½” DC |
| RIG FLOOR SET BACK Rated load capacity (mt.) | 350.000 Ibs |
| ROTARY CASING CAPACITY Rated load capacity (mt.) | 650,000 lbs |
| DRAWWORK: main drum | 750,000 Ibs |
| DRILLING LINE | 750,000 Ibs |
| DEAD LINE ANCHOR Max. load that rig can handle | 350 MT |

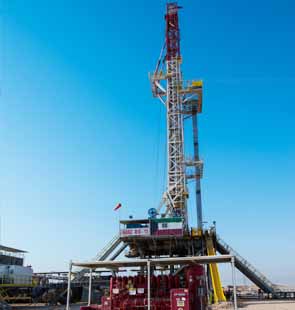

| Rig name | RIG-18 |
| Rig Type | HONGHUA |
| Rig year of construction or assembly | 2014 |
| RIG HP | 1500HP |
| Rotary Table | HH ZP-375 |
| Drilling Line | 1-3/8′ |
| Top Drive | NOV-TDS-11SA |
| Power System | VFD |
| Mud Pumps | HHF-1600HL |
| Nominal drilling capability with 5” OD drill pipes | 6000 M |
| Total truck trips required to move the Rig between locations | 150 LOADS WITH MINI CAMP AND MAIN CAMP |
| Standard truck trips required to move the Rig between locations | 140 TRIPS |
| Out of standard truck / trailer trips required to move the Rig between locations | 10 TRIPS |
| Estimated Rig up time.(days) | 3 DAYS |
| Rated hoisting capacity of crane requested to handle the heaviest load | 100 TONS |
| Actual Rig status (drilling-idle-etc.) | DRILLING |
| Actual Rig location. | KOC |
| Average fuel consumption in normal drilling operation | 7500 LITRES PER DAY |
| DERRICK or MAST | 750,000 Ibs |
| CROWN BLOCK | 350 Ton |
| TRAVELLING BLOCK Rated load capacity (mt.) | 460 Ton(4500KN) |
| HOOK | N/A |
| SWIVEL HEAD | N/A |
| TOP DRIVE | 500 Ton |
| RACKING PLATFORM Rated Load Capacity(DP, DC) | 120 Stands = 5” DP 2 Stands = 10” DC 5 Stands = 81/4” DC 6 Stands = 6 ½” DC |
| RIG FLOOR SET BACK Rated load capacity (mt.) | 350.000 Ibs |
| ROTARY CASING CAPACITY Rated load capacity (mt.) | 650,000 lbs |
| DRAWWORK: main drum | 750,000 Ibs |
| DRILLING LINE | 750,000 Ibs |
| DEAD LINE ANCHOR Max. load that rig can handle | 350 MT |
